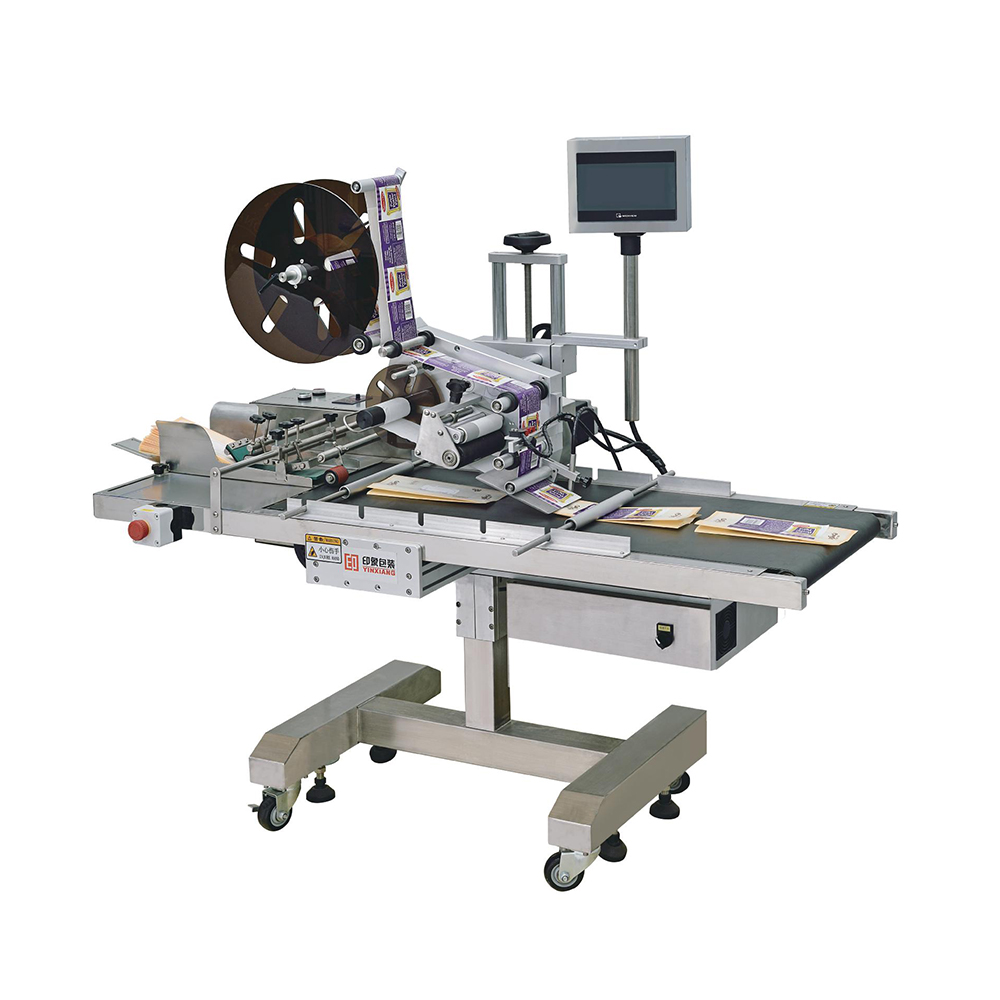

The machine applies to top labeling of plane products such as unshaped cartons, plastic bags, and paper cards.
Applicable labels are sticker labels used by rolling machines.
● In support of paging piled products and separating them based on speed diference after they are placed manually onto the entrance of the paging machine.
● Thickness of products that can be paged: 0.2-5mm.
● Width of products that can be paged: 70-400mm (width can be adjusted according to customer requirements).
● Length of products that can be paged: 70-600mm.
● Entrance of paging structure: holding up to 100mm height once.
● Material collection and piling mode: dropping.
● Paging speed: 0-30m/min.
● Power for labeling: advanced stepping servo motor.
● Advanced photoelectric eye made by Japanese or German enterprises.
● Control: PLC and man machine interface.
● Adjustable labeling position: front, rear, up, or down.
● Inner diameter of paper roll Φ76mm; outer diameter Φ360mm.
● Label specifications: bottom paper width 20-130mm (width can be adjusted according to customer requirements).
● Labeling speed: O-30m/min (actual speed is subject to the size of the carton).
